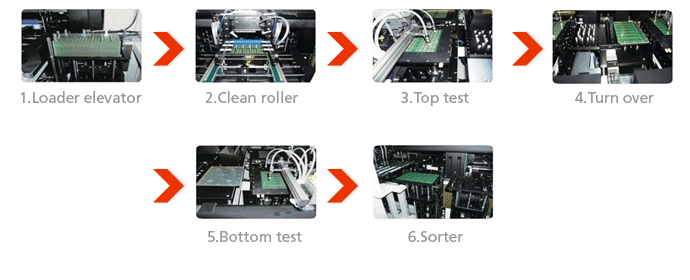

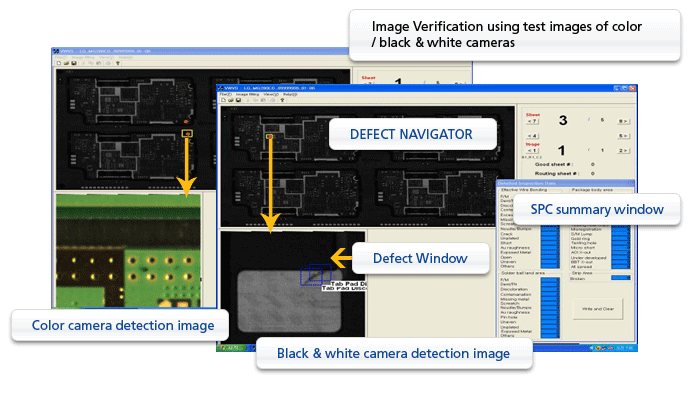

HDI/MLB Home > Products > HDI/MLB AVIS-3600 AFVI for Memory module PCB Build-up PCB Automotive PCB. Automatic Vision Inspection System for HDI/MLB General Specification Item Analysis vision Type Qty Resolution Minimum detection defect Test Area B&W Camera 12K line scan 2 13um/pixel 40um Metal Surface Color Camera 7.4K line scan 2 21um/pixel 60um SR Surface Lighting Hybrid lighting Tested Products Type: Memory module, Build-up PCB, other HDI PCB Size: (W)80~200mm, (L)80~300mm, (T)0.7mm~2.0mm Surface processing: OSP, Soft Au, Hard Au, HAL, TiN, Selective OSP Productivity(Build Up) (W)80~150mm x (L)180mm: 4.0~4.5 sec (W)80~150mm x (L)225mm: 4.5 ~ 5.0 sec (W)80~150mm x (L)300mm: 5.0 ~ 5.5 sec 1 scan (W)151~200mm x (L)225mm: 7.0 ~ 7.5 sec (W)151~200mm x (L)300mm: 8.0 ~ 8.5 sec 2 divided scans size (W)2,465 x (D)1,560 x (H)1,900mm, Weight: 2.5ton Includes Hepa filter power AC 220v, single phase, Ampere: 25A~30A, 6~7Kw control PC based motion control air 5kg/cm2, air pressure consumption: 1,800 liter/min. Workflow Main Function Item Specification Remarks Camera & boats Dual suction boat. (Total 4: 2 top test boats, 2 bottom test boats) 2x12K black & white cameras, 2x 7.4K color cameras Scan width FOV 150mm @ 21 um resolution-PSR area FOV 150mm @ 13 um resolution-Metal area Capable of divided scanning Particle control Dust Clean Roller Light control Automatic illumination calibration function Auto focus Auto focus function Teach - Golden board + CAM data compound method - Teach data sharing function Requires 2H for master registration Off-line Server Off-line server minimize machine down-time Multiple AFVI can share one teach file Image Verification System
