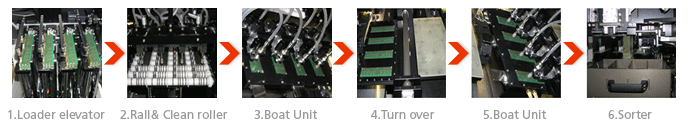

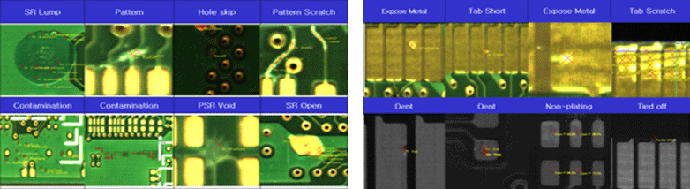

HDI/MLB Home > Products > HDI/MLB AVIS-3200S AFVI for singulated memory module Automatic Vision Inspection System for HDI/MLB General Specification Item Specification Vision system Camera: 12K black & white camera (Metal test) + 7.4k color camera (SR test) Resolution: Black & white image (13 um), color image (22 um) Minimum defect size: 3pxl (Metal area-39 um, PSR area-66 um) Inspected Products Type: Singulated Memory module Size: (W)18.3~50.8mm, (L)67.6~162.6mm, (T)0.7~2.0mm Surface finish: OSP, Soft Au, Hard Au, HASL Productivity 1.8 sec / Piece (7 sec / 4pieces) Size (W)2,330 X (D)1,510 x (H)1,740mm, Weight: 2 ton (*When mounting HEFA filter: (H)1,900mm) Power AC 220V, single phase, Ampere: 20A, 4~5Kw Control PC based motion control Air 5~6kg/cm2, air pressure consumption: 1,200 liter/min Workflow Detect ability Image
